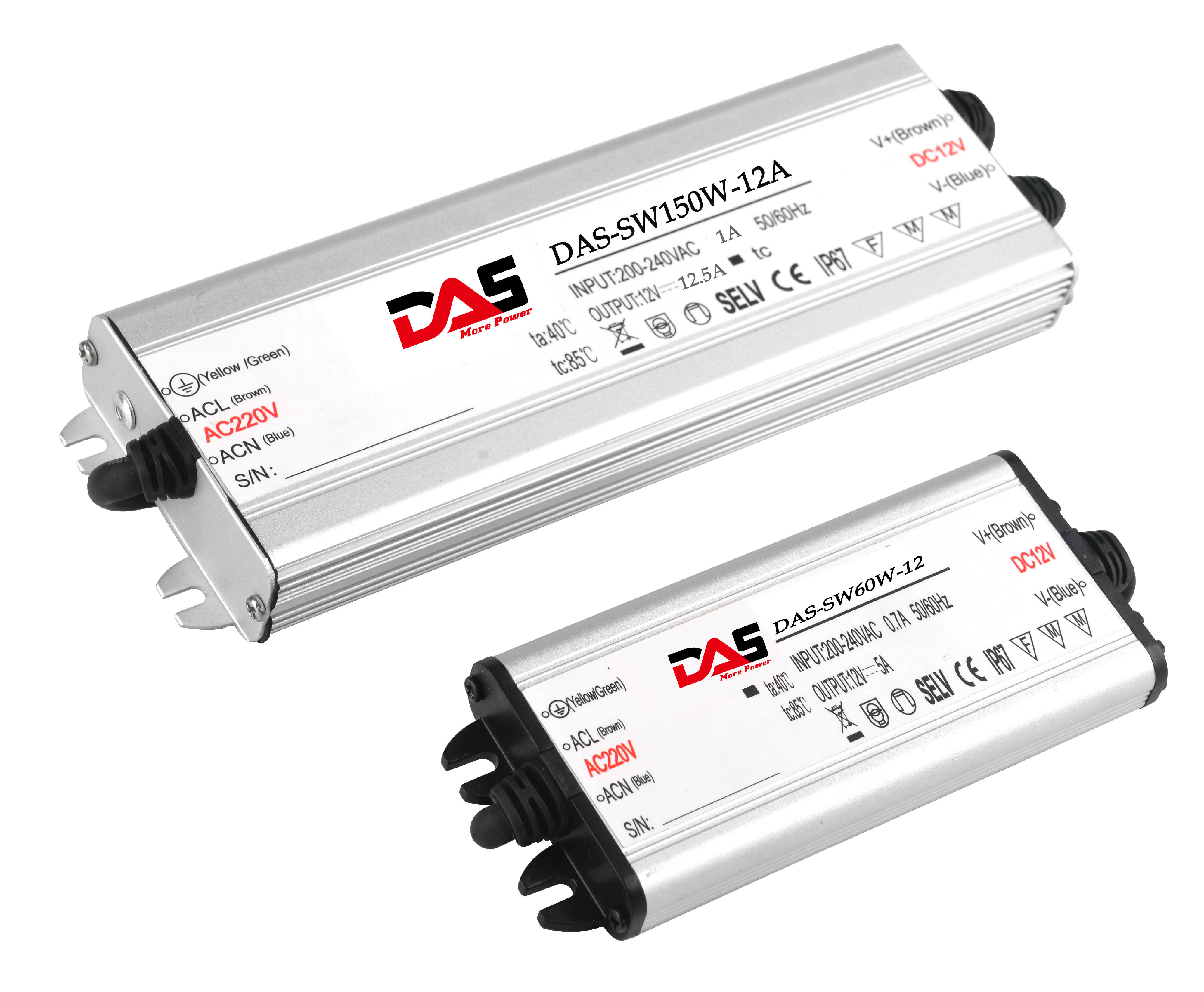

12V 24V UItra-thin LED Driver IP67 Power Supply

Current location：Home > Product

12V 24V UItra-thin LED Driver IP67 Power Supply: Model:; Next Previous

Detailed introduction

□ Withstand 300VAC surge input for 5 second
■ 可承受300VAC浪涌输入5秒

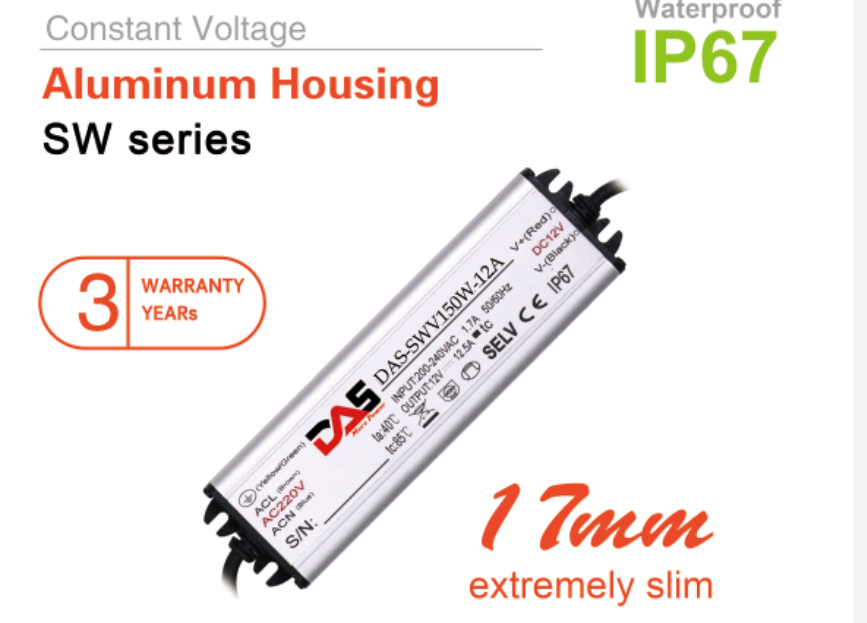

□ Extremely slim 17mm thickness，narrow small size,easy to install
■ 超薄壳体，厚度仅17mm，尺寸窄小，易安装
□ Protections:Short circuit/Overload/Over voltage
■ 保护类型：短路/过负载/过电压
□ Cooling by free air convention
■ 自然风冷
□ High efficiency,long life and high reliability
■ 高效率，长寿命，可靠性高
□ Over voltage category III
■ 过电压等级III
□ 100% full load burn-in test
■ 100%满载老化测试
□ 3 Years Warranty
■ 3年质保

PARAMETER
Item	Nominal Power	Output Voltage(DC)/Current	Input Voltage(AC)	Power Factor	Power efficiency	Dimension （LWH)mm	N.W (g)	IP Grade
DAS-SWV-12/24V-D30B	30W	12V 2.5A/24V 1.25A	100-265V	>0.6	>85%	1205717	210	IP67
DAS-SWV-12/24V-D60B	60W	12V 5A/24V 2.5A			>85%	1305717	260
DAS-SWV-12/24V-D100B	100W	12V 8.33A/24V 4.16A			>85%	1905717	380
DAS-SWV-12/24V-D150B	150W	12V 12.5A/24V 6.25A			>85%	1905725	600

Product Features
Overload protection	Range	5%	Type	Constant current auto-recovery

Over voltage protection	110-150% rated output power
Withstand voltage	I/P-O/P:3KVAC 5S		Working temperature		-40-60℃
Protection	Over Current /Short Circuit /Over Voltage protection
Safty standards	EN60950-1,EN60335-1,EN61558-1/-2-16
Regulatory standards	CE EAC EMC
EMC EMI standards	EN 55015:2012 EN61547 EN61000-3-2:2014 EN1000-3-3:2013 EN 61347-2-13 EN61347-1 EN62943:2015 EN60598-1
Output	Rated output can be customized

SPECIFICATION
OUTPUT 输出	DC VOLTAGE	12V/24V	12V/24V	12V/24V	12V/24V	12V/24V	12V/24V
	输出电压	12V/24V	12V/24V	12V/24V	12V/24V	12V/24V	12V/24V
	CURRENT (max)	2.5A(12V)	3.35A(12V)	4.17A(12V)	5A(12V)	6.7A(12V)	8.3A(12V)
	最大输出电流	1.25A(24V)	1.67A(24V)	2.1A(24V)	2.5A(24V)	3.35A(24V)	4.17A(24V)
	RATE POWER	30W	40W	50W	60W	80W	100W
	额定功率						100W
	RIPPLE & NOISE(max）	≥200MV	≥200MV	≥200MV	≥200MV	≥200MV	≥200MV
	纹波与噪声						≥200MV
INPUT 输入	VOLTAGE RANGE	180-264V	180-264V	180-264V	180-264V	180-264V	180-264V
	输入电压范围						180-264V
	EFFICIENCY(Typ.)	84%	84%	86%	86%	87%	87%
	电源效率（典型值）	84%	84%	86%	86%	87%	87%
	INRUSH CURRENT(Typ）	COLD START 冷启动 60A/230VAC
	浪涌电流	COLD START 冷启动 60A/230VAC
	LEAKAGE CURRENT	<2mA 230VAC
	漏电流	<2mA 230VAC
PROTECTION 保护功能	OVERLOAD	110-150% rated output power.额定输出功率的110-150%
	过载保护	Protection type:Hiccup mode recover automatically,打嗝模式,自恢复
	OVER VOLTAGE	13.8-16.2V (12V) / 27.6-32.4V (24V)
	过压保护	Protection type:Shut down o/p voltage，关断输出电压，重启恢复
	OVER TEMPRETURE	Protection type:Shut down o/p voltage，关断输出电压，重启恢复
	过温度保护	Protection type:Shut down o/p voltage，关断输出电压，重启恢复
ENVIRONMENT 环境	WORKING TEMP	-30～+40℃
	工作温度	-30～+40℃
	WORKING HUMIDITY	20-80% RH non-condensing 无冷凝
	工作湿度	20-80% RH non-condensing 无冷凝
	STORAGE TEMP&HUMIDITY	10-90% RH non-condensing 无冷凝，-40～+60℃
	储存温度及湿度	10-90% RH non-condensing 无冷凝，-40～+60℃
	VIBRATION	10-500Hz,2G 10min/1cycle,period for 60min.each along X,Y,Z axes
	振动	10-500Hz,2G 10分钟/周期 X,Y,Z 轴各60分钟
	OVER VOLTAGE CATEGORY	III,Compliance to EN61558,EN50178,EN60664-1,EN62477-1
	过电压等级	III,Compliance to EN61558,EN50178,EN60664-1,EN62477-1
SAFETY & EMC 安规及电磁兼容性	SAFETY STANDARD	Compliance to EN60950-1,EN60335-1,EN61558-1/-2-16
	安规标准	Compliance to EN60950-1,EN60335-1,EN61558-1/-2-16
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
	耐压指标	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
	EMC EMISSION	Compliance to B,EN55015,EN61347-2-13,EN62943,EN60598-1
	电磁兼容辐射	Compliance to B,EN55015,EN61347-2-13,EN62943,EN60598-1
	EMC IMMUNITY	Compliance to EN61347-1, EN61547,,EN61000-3-3,EN61000-3-2
	电磁兼容抗扰度	Compliance to EN61347-1, EN61547,,EN61000-3-3,EN61000-3-2
