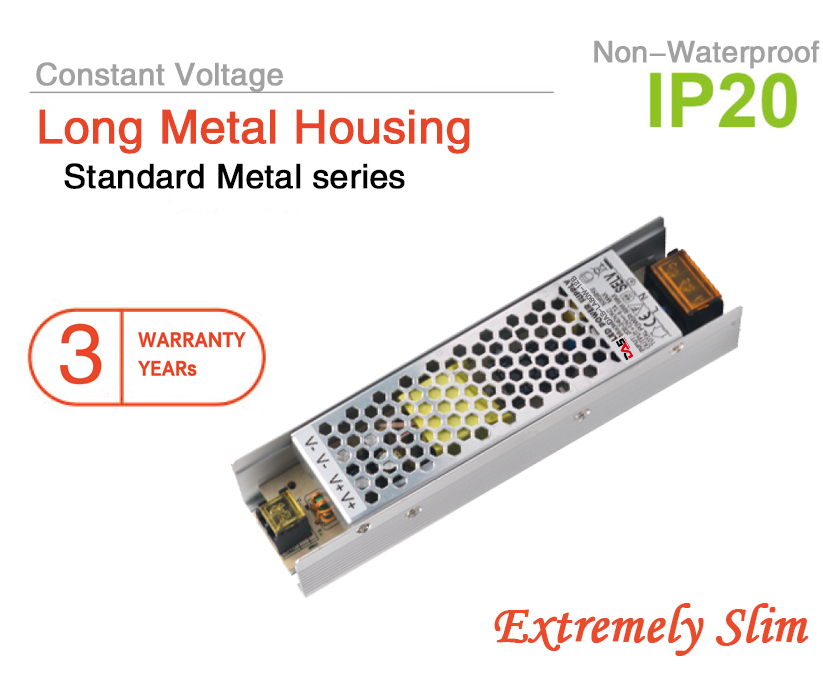

12V 24V long Non-waterproof LED Driver IP20 Power Supply

Current location：Home > Product

12V 24V long Non-waterproof LED Driver IP20 Power Supply: Model:DAS-LA80W-12B; No Data Previous

Detailed introduction

□ Withstand 300VAC surge input for 5 second
■ 可承受300VAC浪涌输入5秒
□ Extremely slim ，narrow small size,easy to install
■ 超薄壳体,尺寸窄小，易安装
□ High operating temperature up to 60℃
■ 工作温度高达60℃
□ Protections:Short circuit/Overload/Over voltage
■ 保护类型：短路/过负载/过电压
□ Cooling by free air convention
■ 自然风冷
□ High efficiency,long life and high reliability
■ 高效率，长寿命，可靠性高
□ Over voltage category III
■ 过电压等级III
□ 100% full load burn-in test
■ 100%满载老化测试
□ 3 Years warranty
■ 3年质保

BASIC PARAMETER

Item	Nominal Power	Output Voltage(DC)/Current	Input Voltage(AC)	Power Factor	Power efficiency	Dimension （LWH)mm	IP Grade
DAS-YAV-12/24V-60W	60W	12V 5A/24V 2.5A	100-265V	PF>0.6 PF>0.9	>85%	1395528	IP20
DAS-YAV-12/24V-100W	100W	12V 8.33A/24V 4.16A				1395528
DAS-YAV-12/24V-150W	150W	12V 12.5A/24V 6.25A				1786128
DAS-YAV-12/24V-200W	200W	12V 16.6A/24V 8.33A				1786128
DAS-YAV-12/24V-250W	250W	12V 20.83A/24V 10.41A				21561.730.8
DAS-YAV-12/24V-300W	300W	12V 25A/24V 12.5A				21561.730.8

Product Features
Overload protection	Range	5%	Type	Constant current auto-recovery
Over voltage protection	110-150% rated output power
Withstand voltage	I/P-O/P:3KVAC 5S		Working temperature		-30～+60℃
Protection	Over Current /Short Circuit /Over Voltage protection
Safty standards	EN60950-1,EN60335-1,EN61558-1/-2-16
Regulatory standards	CE EAC EMC
EMC EMI standards	EN55032(CISPR32),Class B,EN55014,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2)
Output	Rated output can be customized

SPECIFICATION
OUTPUT 输出	DC VOLTAGE	12V/24V	12V/24V	12V/24V	12V/24V	12V/24V
	输出电压
	CURRENT (max)	1.67A(12V)	2.5A(12V)	3.35A(12V)	4.17A(12V)	5A(12V)
	最大输出电流	0.83A(24V)	1.25A(24V)	1.67A(24V)	2.1A(24V)	2.5A(24V)
	RATE POWER	20W	30W	40W	50W	60W
	额定功率
	RIPPLE & NOISE(max）	≥200MV	≥200MV	≥200MV	≥200MV	≥200MV
	纹波与噪声
INPUT 输入	VOLTAGE RANGE	180-264V	180-264V	180-264V	180-264V	180-264V
	输入电压范围
	EFFICIENCY(Typ.)	85%	85%	85%	86%	86%
	电源效率（典型值）
	INRUSH CURRENT(Typ）	COLD START 冷启动 60A/230VAC
	浪涌电流
	LEAKAGE CURRENT	<2mA 230VAC
	漏电流
PROTECTION 保护功能	OVERLOAD	110-150% rated output power.额定输出功率的110-150%
	过载保护	Protection type:Hiccup mode recover automatically,打嗝模式,自恢复
	OVER VOLTAGE	13.8-16.2V (12V) / 27.6-32.4V (24V)
	过压保护	Protection type:Shut down o/p voltage，关断输出电压，重启恢复
	OVER TEMPRETURE	Protection type:Shut down o/p voltage，关断输出电压，重启恢复
	过温度保护
ENVIRONMENT 环境	WORKING TEMP	-30～+40℃
	工作温度
	WORKING HUMIDITY	20-80% RH non-condensing 无冷凝
	工作湿度
	STORAGE TEMP&HUMIDITY	10-90% RH non-condensing 无冷凝，-40～+85℃
	储存温度及湿度
	VIBRATION	10-500Hz,2G 10min/1cycle,period for 60min.each along X,Y,Z axes
	振动	10-500Hz,2G 10分钟/周期 X,Y,Z 轴各60分钟
	OVER VOLTAGE CATEGORY	III,Compliance to EN61558,EN50178,EN60664-1,EN62477-1
	过电压等级
SAFETY & EMC 安规及电磁兼容性	SAFETY STANDARD	Compliance to EN60950-1,EN60335-1,EN61558-1/-2-16
	安规标准
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
	耐压指标
	EMC EMISSION	Compliance to B,EN55015,EN61347-2-13
	电磁兼容辐射
	EMC IMMUNITY	Compliance to EN61347-1, EN61547
	电磁兼容抗扰度
